Convert LUX to FC — Conversion of Measurement Units
How many LUX in 1 FC? The answer is 10.763909999607. Note that rounding errors may occur, so always check the results. Use this page to learn how to convert between LUX and FC. Type in your own numbers in the form to convert the units!
Quick conversion chart of LUX to FC
1 LUX to FC = 0.0929 FC
10 LUX to FC = 0.92903 FC
20 LUX to FC = 1.85806 FC
30 LUX to FC = 2.78709 FC
40 LUX to FC = 3.71612 FC
50 LUX to FC = 4.64515 FC
100 LUX to FC = 9.2903 FC
200 LUX to FC = 18.58061 FC
Want other units?
You can do the reverse unit conversion from FC to LUX, or enter any two units below:
Калькулятор преобразования фут-свечки в люкс
Калькулятор преобразования освещенности в фут-канделах (fc) в люкс (lx) и способ преобразования.
Введите освещенность в фут-канделах (fc) и нажмите кнопку Calculate , чтобы получить освещенность в люксах (lx):
Формула перевода люкс в фут-свечки
Освещенность E v в люксах (лк) равна освещенности E v в фут-канделах (fc), деленной на 0,09290304:
E v (лк) = E v (fc) / 0,09290304 = E v (fc) × 10,76391
Преобразовать люкс в фут-свеча (лк в fc):
С помощью этого калькулятора можно ввести значение для конвертации вместе с исходной единицей измерения, например, ‘258 люкс’. При этом можно использовать либо полное название единицы измерения, либо ее аббревиатуруНапример, ‘люкс’ или ‘лк’. После ввода единицы измерения, которую требуется преобразовать, калькулятор определяет ее категорию, в данном случае ‘Освещенность’. После этого он преобразует введенное значение во все соответствующие единицы измерения, которые ему известны. В списке результатов вы, несомненно, найдете нужное вам преобразованное значение. Как вариант, преобразуемое значение можно ввести следующим образом: ’11 лк в fc‘ или ’20 лк сколько fc‘ или ’33 люкс -> фут-свеча‘ или ’84 лк = fc‘ или ’82 люкс в fc‘ или ’72 лк в фут-свеча‘ или ’44 люкс сколько фут-свеча‘. В этом случае калькулятор также сразу поймет, в какую единицу измерения нужно преобразовать исходное значение. Независимо от того, какой из этих вариантов используется, исключается необходимость сложного поиска нужного значения в длинных списках выбора с бесчисленными категориями и бесчисленным количеством поддерживаемых единиц измерения. Все это за нас делает калькулятор, который справляется со своей задачей за доли секунды.
Кроме того, калькулятор позволяет использовать математические формулы. В результате, во внимание принимаются не только числа, такие как ‘(95 * 25) лк’. Можно даже использовать несколько единиц измерения непосредственно в поле конверсии. Например, такое сочетание может выглядеть следующим образом: ‘258 люкс + 774 фут-свеча’ или ’93mm x 42cm x 24dm = ? cm^3′. Объединенные таким образом единицы измерения, естественно, должны соответствовать друг другу и иметь смысл в заданной комбинации.
Если поставить флажок рядом с опцией ‘Числа в научной записи’, то ответ будет представлен в виде экспоненциальной функции. Например, 6,024 297 476 043 1 × 10 30 . В этой форме представление числа разделяется на экспоненту, здесь 30, и фактическое число, здесь 6,024 297 476 043 1. В устройствах, которые обладают ограниченными возможностями отображения чисел (например, карманные калькуляторы), также используется способ записи чисел 6,024 297 476 043 1E+30. В частности, он упрощает просмотр очень больших и очень маленьких чисел. Если в этой ячейке не установлен флажок, то результат отображается с использованием обычного способа записи чисел. В приведенном выше примере он будет выглядеть следующим образом: 6 024 297 476 043 100 000 000 000 000 000. Независимо от представления результата, максимальная точность этого калькулятора равна 14 знакам после запятой. Такой точности должно хватить для большинства целей.
What is Lux? All Information About The Illuminance in Lux
The concept of illuminance has not only existed since LED technology. It is the luminous flux that actually reaches an illuminated surface. Illuminance is measured in the unit lux. With this value, brightness can be measured by one or more light sources. Here you can find out everything about the definition and background of illuminance.
What is illuminance?
Illuminance is a common photometric quantity used to determine the brightness of a given area. Illuminance indicates how much luminous flux in lumens falls on a defined surface. It is therefore not a transmitted quantity of the light source but a received quantity. The brightness of the lamp is irrelevant, the important factor is how much light reaches the illuminated surface.
The brightness of one or more light sources only has an indirect influence on the illuminance. The critical factor is the luminous flux actually received on a defined surface.
Illuminance is a general measure of how much light power should be installed in a room. It does not matter whether the light is emitted by one or more light sources. Illuminance is defined as the total light output of all installed light sources.
With the Lumen Lux Calculator you can easily convert Lux to Lumen.
What is the unit of illuminance?
The unit to measure the illuminance is lux with the abbreviation lx. A light source with a luminous flux of one lumen which uniformly illuminates an area of one square metre has an illuminance of one lux. This is comparable to the brightness of a candle flame, which also reaches an illuminance of around one lux at a distance of one metre.
1 lux (lx) corresponds to a luminous flux of 1 lumen per square metre.
Is there a difference to the perceived brightness?
The illuminance is independent to the perceived brightness. For example, the light at two workstations, both illuminated at 500 lx, can have different brightnesses. The reason for this are the different reflection properties. A workplace with a bright interior reflects the received light to a greater degree than a dark interior.
The impression of brightness depends only indirectly on the illuminance. This is caused by the colors and materials present in the illuminated environment and the associated reflective properties.
How to measure illuminance?
There are two ways to measure illuminance. For a professional measurement there are lux meters in different tolerance classes. These have a light sensor to capture the light on the surface. Even angular occurring light is correctly evaluated by a professional measuring device.
Shop Related Products
18500 FC) Foot Candles Luxmeter for Film Photography Plants Photometer Lighting Intensity Brightness Measurement
Amazon
18,500 FC) Foot Candles Luxmeter for Film Photography Plants Photometer Lighting Intensity Brightness Measurement
Amazon
18,500 FC) Foot Candles Luxmeter for Film Photography Plants Photometer Lighting Intensity Brightness Measurement(UT383BT)
Amazon
Amazon
200,000 Measurement Range Lux/FC Unit MAX/MIN/Hold Function
Amazon
Most smartphones today also have a light sensor built in. Of course, this is not intended for a professional measurement. Nevertheless, there are a number of apps to measure the illuminance. But in practice, there are very large deviations with this type of measurement. For a professional measurement of illuminance, a lux meter should always be preferred.

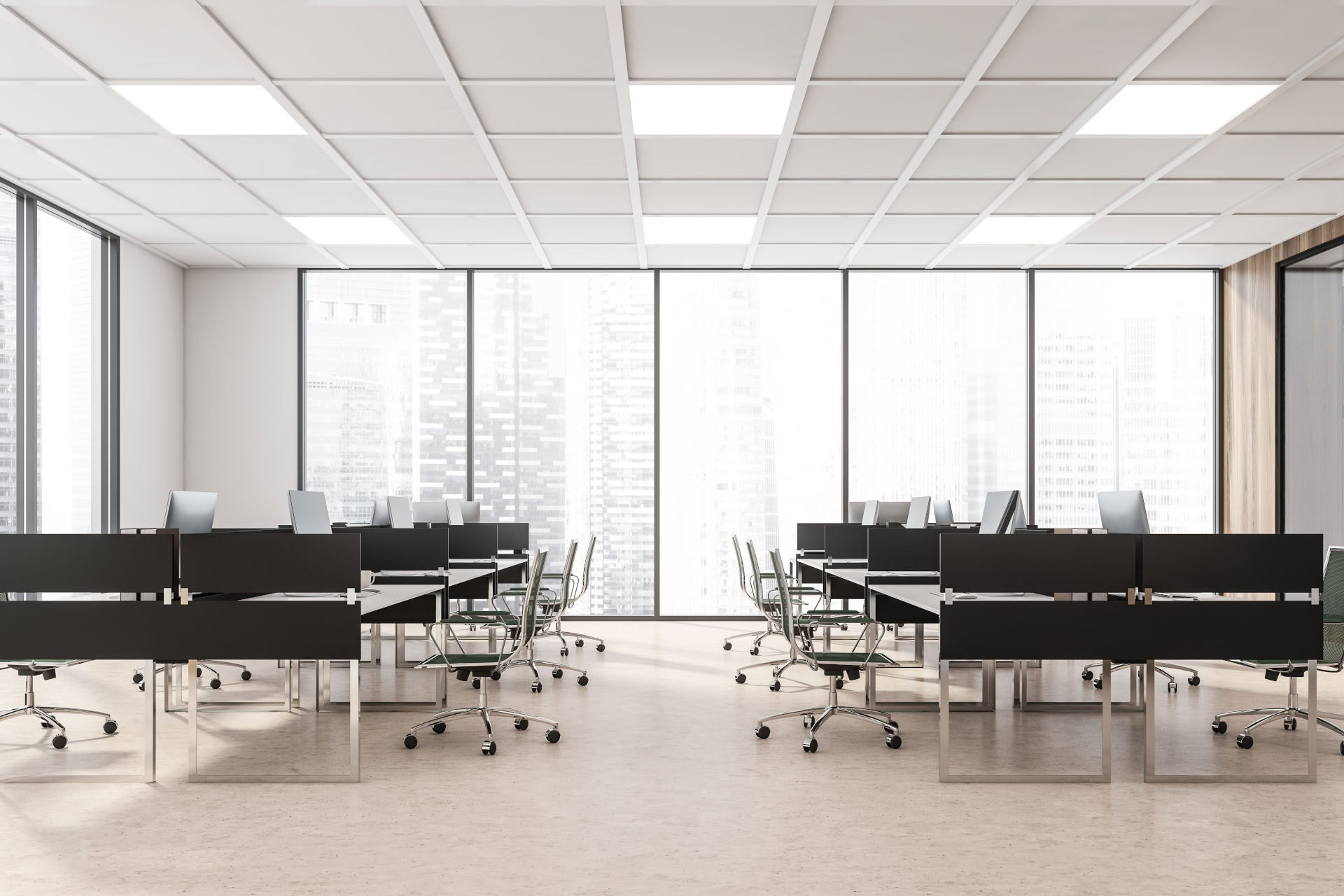

High illuminance in the conference room increases concentration
What illuminance is required?
At home there are no regulations for the illuminance. Here you can illuminate everything according to your own taste. But in the commercial sector, there may be regulations that require a minimum illuminance level depending on the activity and environment. Different requirements apply depending on the visual task.
The purpose of these regulations is to achieve bright and uniform lighting at workplaces. This prevents fatigue and increases concentration both at office workplaces and at construction sites. As a result, fewer errors occur and accidents can be avoided.
What are the minimum requirements?
The average minimum illuminance levels depending on the activity and visual task are specified in country specific regulations. For European countries these could be found in the EN 12464-1. For the US these could be found in the regulation standard 1926.56. The specifications are minimum values which must never be undercut. Influences such as soiling or ageing of the lamps must also be taken into account.
New lighting installations are designed with higher illuminance. So a sufficient reserve is available and the minimum illuminance is not undercut despite the age-related factors. As soon as this occurs, the lighting needs to be serviced.
Recommended light levels
The following table gives some examples of recommended illuminance levels for specific rooms or activities according to EN 12464-1.
| Room/Task | Illuminance |
|---|---|
| Color checks | 1000 lx |
| Painting, sanding | 750 lx |
| Office workplaces | 500 lx |
| Packaging areas | 300 lx |
| Waiting areas | 200 lx |
| Corridors | 100 lx |
| Emergency escape routes | 1 lx |
Recommended light levels in lux
How much lux has daylight?
Daylight reaches up to 20,000 lux on cloudy days. Up to 100,000 lux can be achieved on a sunny day. This question is frequently asked in order to make comparisons with the planned lighting.
However, such a comparison rarely makes sense, as the illuminance levels indoors are usually only a fraction of the values of the sunlight. This is also perfectly sufficient, as the eye adapts to the different light intensities in wide areas via the opening of the pupils.
Conclusions
Illuminance is used to determine the luminous flux falling on a surface. With this value in lux, lighting installations can be planned and calculated according to the type of room and activity. While there are no fixed requirements for minimum illuminance in private areas, the values defined in the standards apply in the commercial sector.
